How to Use USB Devices With Smartphones & Tablets: On-The-Go Cables
Eugene is a qualified control/instrumentation engineer Bsc (Eng) and has worked as a developer of electronics & software for SCADA systems.
Mobile phones and smartphones are great for navigating the Internet, listening to music, watching TV or YouTube, and doing all sorts of other things using the multitude of Android and iOS apps now available. However, they have one major drawback compared to a standard desktop or notebook computer, the lack of a full-sized USB type A connector socket.
What Is a USB Connector?
Unless you've lived under a stone for the last 25 years, you'll know that desktops and laptops come with one, and usually two or three, USB type A connectors fitted as standard. The USB standard was released in 1996, and according to Wikipedia:
"...is an industry standard that establishes specifications for cables, connectors and protocols for connection, communication and power supply (interfacing) between computers, peripherals and other computers"
USB connectors on computers replaced the earlier parallel and serial connectors for communicating with peripherals such as printers and electronic instruments respectively. A USB connector on a desktop/laptop is typically used for connecting a mouse, external hard drive, printer, memory stick, digital camera or smartphone.

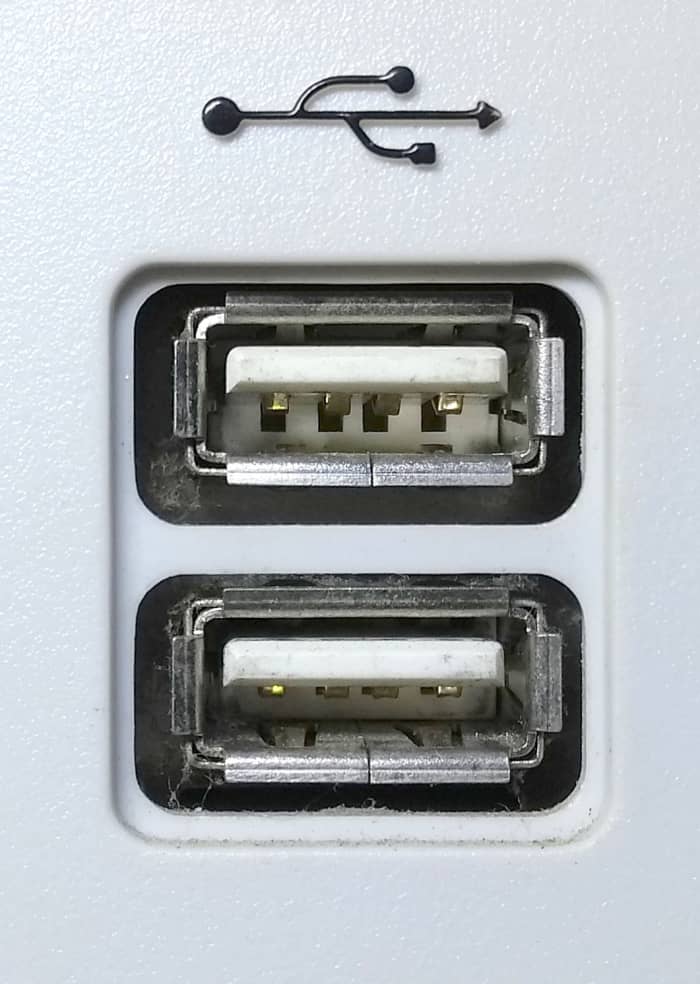

Standard USB Type A receptacle or female socket as used on most laptops and desktop computers.
© Eugene Brennan

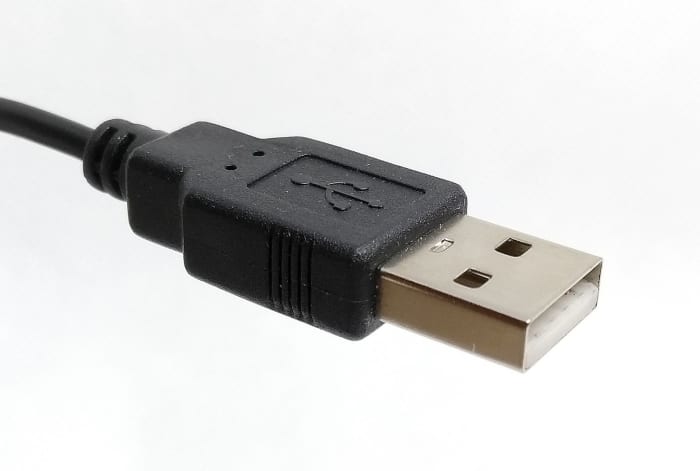

Standard USB type A connector used for connecting to a desktop computer or phone charger. This connector is also used as standard on mice, memory sticks, printer cables etc.
© Eugene Brennan
USB memory stick with standard type A connector.
© Eugene Brennan
The Most Common USB Cable
A cable with a USB type A plug on one end and a micro USB type B plug on the other end is probably the most commonly used. This is what you use for charging your Android phone, but you may also use it for connecting your computer to the phone in order to download and upload files.
Charging/Data Transfer Cable
USB type A plug to micro USB type B plug.
© Eugene Brennan
What Are Type A and Type B Connectors in the USB Standard?
A USB setup involves a host and a device. Typically the host is a laptop, and the device could be a mouse or smartphone connected to it by cable (or wirelessly in the case of a plugin USB transceiver used with the mouse)
The host is designated as "A" with a female connector (socket).
The device is designated as "B" with a female connector (socket)
The connecting cable has a type A male connector (plug) on one end to connect to the host and a type B or C plug on the other end to connect to the device.
Type B plugs are either mini types for connecting to older dumb or smartphones or micro types for most other phones. Larger type B plugs, as specified in the earlier version of the USB standard, are typically used for connecting to a printer.
Type C plugs are used for connecting to newer smartphones.
Various Types of USB Plugs and Sockets (Receptacles)

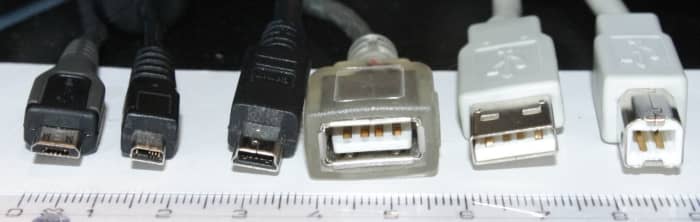

From left to right, (1) Type B micro plug, (2) proprietary UC-E6 plug, (3) Type B mini plug (4) Type A socket (receptacle), (5) Type A plug, (6) Type B plug, typically used for connecting to a printer.
Using an On-The-Go Adapter
You can provide your mobile device with a full-sized type A USB connector by using an On-The-Go adapter cable. (Also called an OTG cable or OTG adapter cable). This typically has a mini USB, micro USB, or newer type C plug on one end and a type A socket on the other end.
OTG effectively allows what was a device to act as a host, so peripherals can be connected to it.
On-The-Go (OTG) cable
© Eugene Brennan
Connecting an OTG Cable to a Phone
The photo below shows a typical use of an OTG cable to connect a standard USB memory stick.
Using the OTG cable with a memory stick.
© Eugene Brennan
Can an OTG Adapter be Used With High Powered Devices?
Probably not. I've only tested one with a wireless USB dongle for a cordless mouse and a memory stick. The USB 2.0 standard specifies that a device may draw 5 unit loads from a port. So that's 5 x 100 = 500 mA. Drawing excessive current from the port on a phone is probably not a good idea to power e.g. an external hard drive. In any case check the spec. of the phone and also the OTG cable.
References:
Wikimedia Foundation. (2022, March 3). USB. Wikipedia. Retrieved March 6, 2022, from https://en.wikipedia.org/wiki/USB
Doktoro ReichardDoktoro Reichard 5. (1961, November 1). What is the power output of a USB port? Super User. Retrieved March 6, 2022, from https://superuser.com/questions/690074/what-is-the-power-output-of-a-usb-port
