Review of the Jireno Cube4 Portable Projector

Walter Shillington writes about products he knows firsthand. His articles focus on healthcare, electronics, watches, and household items.

The  Jireno Cube4 Portable Projector

The Jireno Cube4 Portable Projector

The last portable projector I reviewed was small enough to fit inside my coat pocket. It came with a magnetic tripod, and the device's internal battery pack could power this projector for up to 80 minutes.

When Jireno designed their new projector, they took a completely different approach. At first sight, the Cube4's only nods to portability are a bright orange strap and a well-padded carrying case.

However, when I read the specifications, I noticed that this projector is equipped with automatic focus and the new 6D automatic keystone correction system. These functions could be incredibly useful when fitted to a projector designed to be carried from place to place.

Optional case

Optional case



This projector weighs in at 4.8 pounds. It is 12.5 inches wide, 7.5 inches deep, and 7.2 inches high. The Cube4's outer shell is composed of aluminum with a power button centered at the top.

The lens, an infrared port, and a sensor used in conjunction with keystone correction and automatic focus are featured at the front of this projector. Warm air, pushed by a pair of fans, exits from the grill positioned below.

Cooler air is sucked inside the device through the large rear grill, brushing past a pair of hidden five-watt speakers. An HMDI port, USB port, Type-C port, infrared port, and an audio jack are located above.

This projector enjoys a native resolution of 1920 x 1080P and supports 4K. It is rated at 500 ANSI lumens with a contrast ratio of 3000:1.

My package included the projector, user guide, AC adaptor, a bright orange strap, remote, and the optional carrying case.


  • Manufacturer: Jireno
  • Model: Cube4
  • Dimensions: 12.5 x 19 x 18.3 centimeters (5 x 7.5 x 7.2 inches)
  • Weight: 2.2 kilograms (4.8 pounds)
  • Input power: AC 100 - 240V
  • Projection method: Front/rear/desk
  • Display technology: LCD
  • Light engine: LED
  • Brightness: 500 ANSI Lumens
  • Native resolution: 1920 x 1080p (4K supported)
  • Contrast: 3000:1
  • Bluetooth 5: Yes
  • Operating System: JI-OS (Based on Android 9)
  • Chipset: Amlogic T972
  • Rom: 16GB
  • Ram: 2GB
  • Battery: Not applicable
  • Wi-fi: 2.4/5Ghz
  • Interfaces: HDMI, USB, Type-C, audio jack, and DC input
  • Correction: 6D auto and 4-Point keystone
  • Focus adjustment: Auto and manual
  • Lamp life: 30000 hours
  • Aspect ratio: 16:9 and 4:3
  • Screen size: 30 - 200 inches
  • Noise Level: ˂30db
  • Speakers: Two (5 watts)
The power button is centered at the top of the projector

The power button is centered at the top of the projector

The Manufacturer

Jireno is trademarked by Houm Technology Inc. They recently concluded campaigns on Kickstarter and Indiegogo and have now placed their new portable projector on Amazon.


The brightness of projectors is calculated in either LUX or ANSI lumens. According to Jireno, the Cube4 is capable of outputting 500 ANSI lumens. This is sufficient for operations in low light conditions.

Inputs, air intake, and speakers are located at back of projector

Inputs, air intake, and speakers are located at back of projector



Native resolution refers to the projector's fixed horizontal and vertical pixel count. The Cube4 has a native resolution of 1920 x 1080p and supports 4K.

The picture quality you see on the screen is partially determined by the media being played. A movie streamed at 1024 x768p is projected at the same resolution.

The native resolution of the projector also determines picture quality. While the Cube4 can play a 4K movie, its output is downscaled to Full High Definition (1920 x 1080p).


Contrast refers to the ratio of the light reflected from a completely white image and a completely black image. The higher the contrast ratio, the more detail you can see on the projected image. The Cube4's contrast ratio is 3000:1, which means a projected white image is 3000 times brighter than a projected black image.

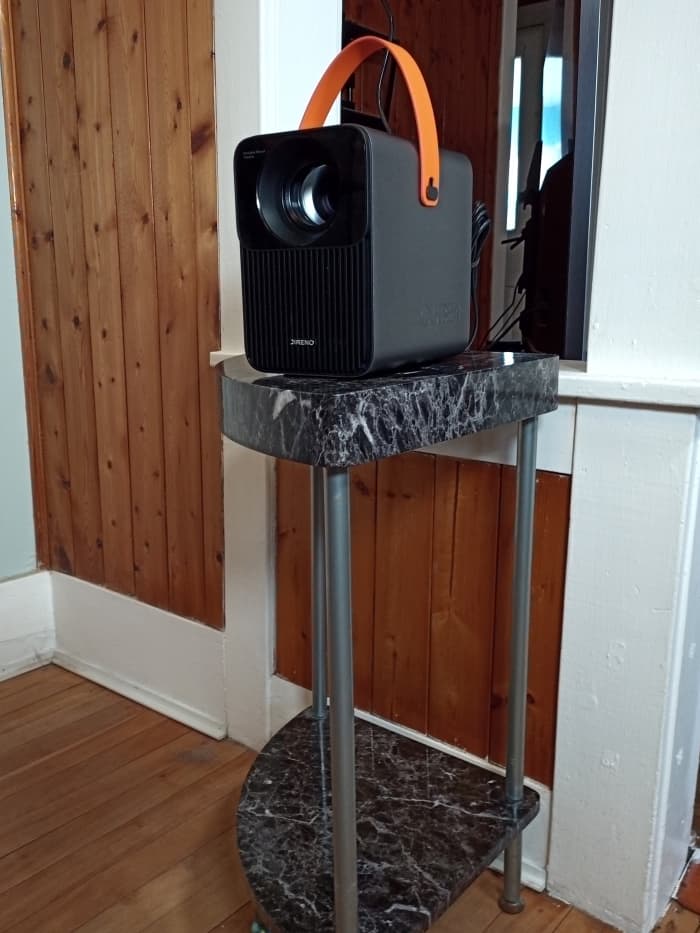

While Cube4 can be used on a table, it should be mounted atop a mini tripod to allow it to be aimed properly

While Cube4 can be used on a table, it should be mounted atop a mini tripod to allow it to be aimed properly

AC adapter connected to the projector

AC adapter connected to the projector

Keystone Correction and Focus

The keystone effect is the apparent distortion of an image caused by projecting it onto an angled surface. The best method of dealing with this problem is to ensure the projector is pointed as directly at its screen as possible.

The Cube4 can correct this distortion digitally via the internal LCD panels of the projector.

This projector is fitted with 6D Keystone Correction, which automatically attempts to correct the image when the projector is turned on or its position adjusted. While this is cutting-edge technology, the results are not always perfect. Happily, Jireno has also included an effective 4-point keystone correction procedure.

The Cube4's automatic focus system performs exceptionally well. Focus can also be adjusted by grabbing the remote and tapping one of the two focus buttons.

The JI-OS Operating System

JI-OS is based on Android 9. It controls the projector's operation and includes the ability to download and use a variety of Android applications.

While this system works, I find that Android streaming applications such as Netflix are more cumbersome than those used in conjunction with Roku or Fire TV streaming sticks.

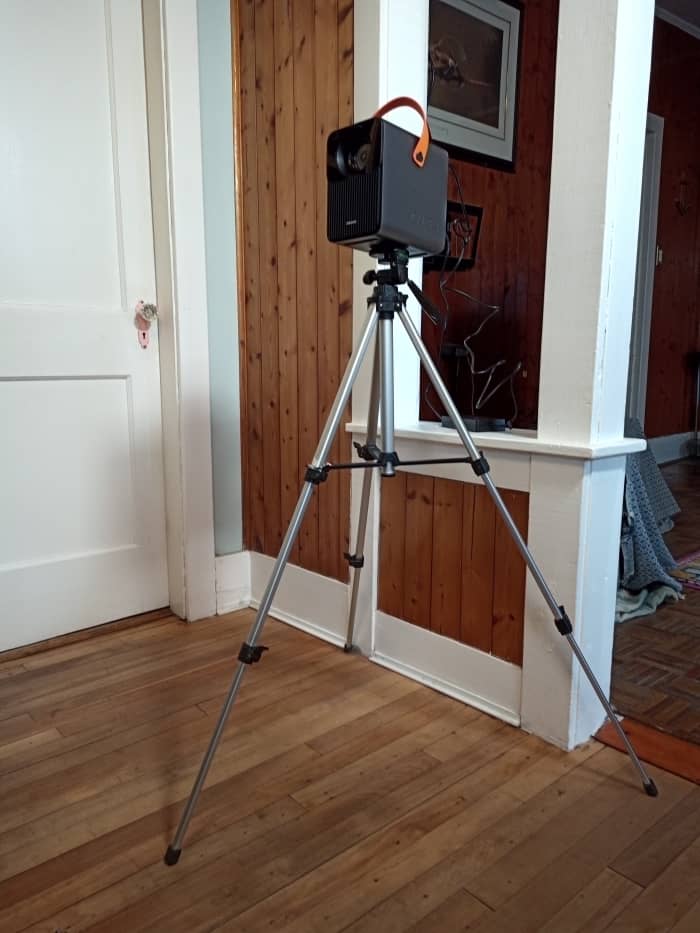

Although utilitarian in design, a large tripod is ideal when using the Cube4 in a variety of locations

Although utilitarian in design, a large tripod is ideal when using the Cube4 in a variety of locations


Sound Quality and Noise Level

The Cube4 is equipped with a pair of five-watt speakers that produce excellent sound. I was impressed.

I was also able to pair my 300W Bluetooth JBL soundbar using Bluetooth.

The noise emitted from the projector's fans is limited to a modest 30db.

Positioning the Projector

If this projector is utilized as a home unit, it would be best to mount it from the ceiling or attach it to a sturdy mini-tripod and place it on a table.

If the Cube4 is expected to be used in various locations, it should be mounted to a large telescopic tripod.

When positioned approximately eight feet from my dining room wall, the Cube4's projected image filled my 100-inch screen.

Power Requirements

Power requirements differ from region to region. This projector is powered by a 120VAC input in the US and Canada.

When using this device in areas beyond the reach of an extension cord, I recommend connecting it to a 300W portable power supply in the 300Wa range.

When using the projector outdoors, a portable power supply  is a good source of power

When using the projector outdoors, a portable power supply is a good source of power

Image Quality Tests

I streamed a Netflix movie during a cloudy day with the bright dining room lights on. The projected image was faded and barely noticeable.

Once the overhead lights were switched off, the picture brightened considerably but not enough to be of any use.

I closed the heavy drapes covering the dining room window. At this point, the movie was watchable, although the colors remained somewhat faded.

As the sun dropped behind my neighbor's house, the room dimmed enough so that the projected movie became enjoyable.

Once the sun was entirely below the horizon, the image was as bright and clear as would be found in a movie theater.

The contrast provided by the Cube4 is quite acceptable, although, in dark scenes, it is sometimes difficult to differentiate background shades. That is normal with projectors in this price range.

A view of my Roku streaming stick attached to the projector

A view of my Roku streaming stick attached to the projector


Operational Tests

I turned the projector on and waited as the device's software loaded.

The final screen, which displayed a set of streaming applications, was automatically focused. The automatic keystone correction worked perfectly because this projector had been previously set up in the general area.

I used my remote to select and load the Prime application. Then I watched a movie.

After the movie was finished, I pushed the remote's settings button for two seconds. I then selected the source option from the settings menu, asking the projector to connect to the Roku streaming stick I had previously attached to the projector. Then I used my Roku remote to stream Netflix.

This projector coordinates very well with Roku and Fire TV streaming sticks. For example, I pressed the Cube4 remote's settings button while using the Roku stick to view a movie. In this case, the settings menu temporarily overlaid the Roku screen, allowing me to adjust the projector. Then I could back out of the settings menu and continue to watch my movie.

Overall Assessment

The Cube4 is exceptionally versatile. While it was designed as a portable projector, its specifications match those of more expensive home projectors.

This unit provides a bright enough output to provide a good image in low-light conditions and a cinema-quality experience after the sun has set. Contrast is acceptable, and its Full High-Definition native resolution looks great on a 100-inch screen.

This device features automatic focus and automatic keystone correction, although it is still a work in progress.

The Cube4 is fitted with an Android-based operating system that allows the downloading and use of streaming applications such as Netflix, Prime, and Tubi. This system also plays well with both Roku and Fire TV streaming sticks.

If you are searching for an excellent portable projector that is easy to set up and projects a bright image with FHD resolution, the Jireno Cube4 is worthy of a very close look.
